2nd Seat Heater

Check for continuity and measure the resistance between No. 1 and NO. 3 terminals.

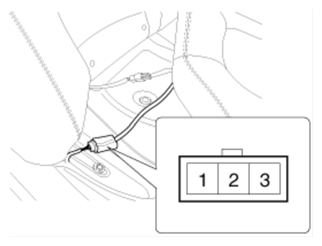

Fig 1: Identifying 2nd Seat Heater Connector Terminals
Courtesy of HYUNDAI MOTOR CO.

Standard value (Bench/Split)

Cushion : 1.53 Ω ± 10%/4.05 Ω ± 10%

Back : 1.35 Ω ± 10%

Set : 2.88 Ω ± 10%
Operate the seat warmer after connecting the 3P connector, and then check the thermostat by measuring the temperature of seat surface.
Standard value (Bench/Split)

Cushion : 40° ± 2°C/40° ± 2°C (104 ± 35.6°F)

Back : 46° ± 2°C (114.8 ± 35.6°F)
