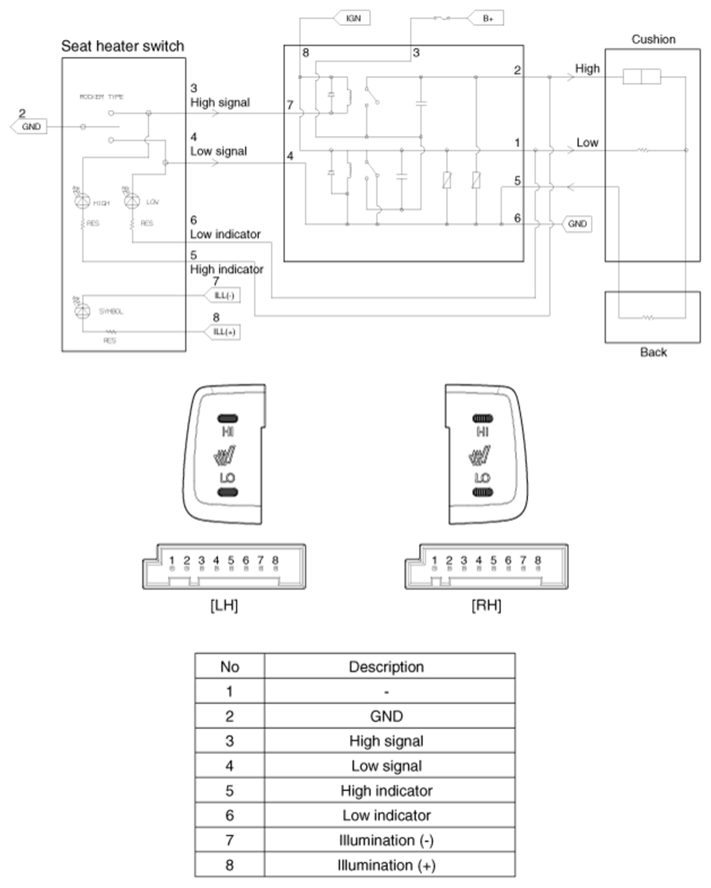

Home >> Hyundai >> 2011 >> Sonata GLS, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Seats >> Seat Electrical - Except HEV >> Seat Heater Switch >> Schematic Diagrams >> Circuit Diagram
