Front Seat Heater Switch

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console upper cover (A).

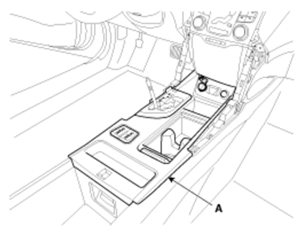

    Fig 1: Identifying Floor Console Upper Cover
    G07359980Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the multimedia jack connector (A) from the floor console upper cover.

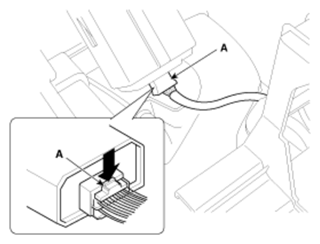

    Fig 2: Disconnecting Multimedia Jack Connector
    G07359981Courtesy of HYUNDAI MOTOR CO.
  4. Remove the seat heater switch connectors from the floor console upper cover (A).

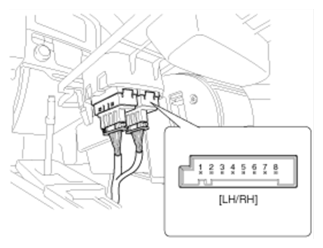

    Fig 3: Identifying Seat Heater Switch Connector Terminals
    G07359982Courtesy of HYUNDAI MOTOR CO.
  5. Operate each seat heater switch and check that continuity exists between the terminals.

    If there is no continuity, replace the seat heater switch

    Fig 4: Seat Heater Switch Terminal Continuity Chart
    G07359983Courtesy of HYUNDAI MOTOR CO.
