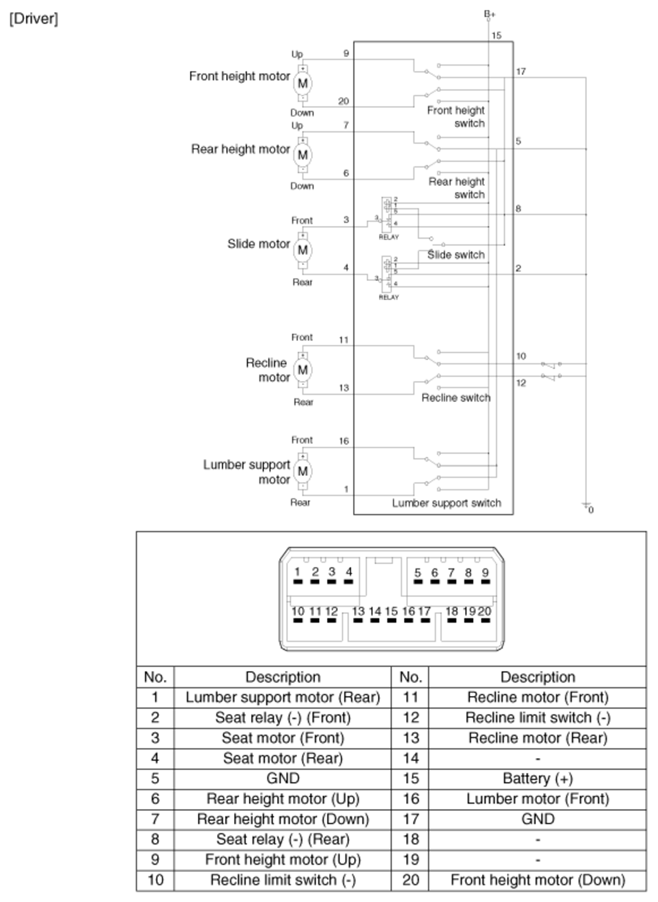

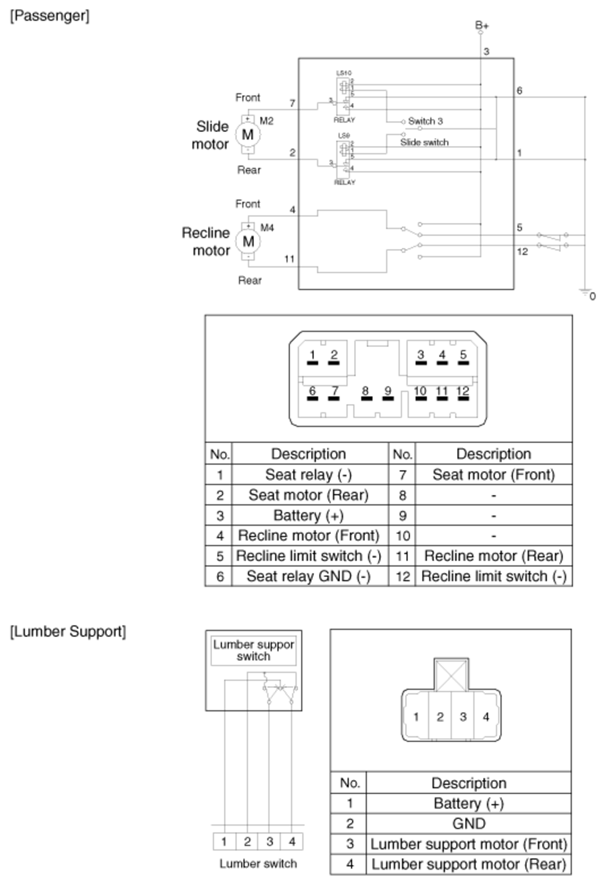

Home >> Hyundai >> 2011 >> Sonata GLS, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Seats >> Seat Electrical - Except HEV >> Power Seat Control Switch >> Schematic Diagrams >> Circuit Diagram
