Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the seat side cover (A).

    (Refer to the "FRONT SEAT ")

    Fig 1: Identifying Seat Side Cover
    G07359976Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the power seat control switch connector (A).
    Fig 2: Identifying Power Seat Control Switch Connector
    G07359977Courtesy of HYUNDAI MOTOR CO.
  4. Loosen the power seat control switch (A) mounting screws (3EA).

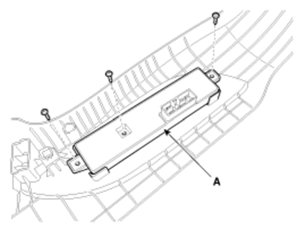

    Fig 3: Identifying Power Seat Control Switch With Mounting Screws
    G07359978Courtesy of HYUNDAI MOTOR CO.
