Repair Procedures: Inspection

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

1. Power seat control switch
2. Lumber support switch

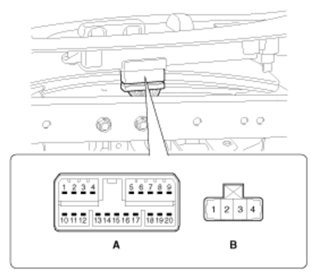

   Fig 1: Identifying Power Seat Control Switch And Lumber Support Switch Connector Terminals

   Courtesy of HYUNDAI MOTOR CO.

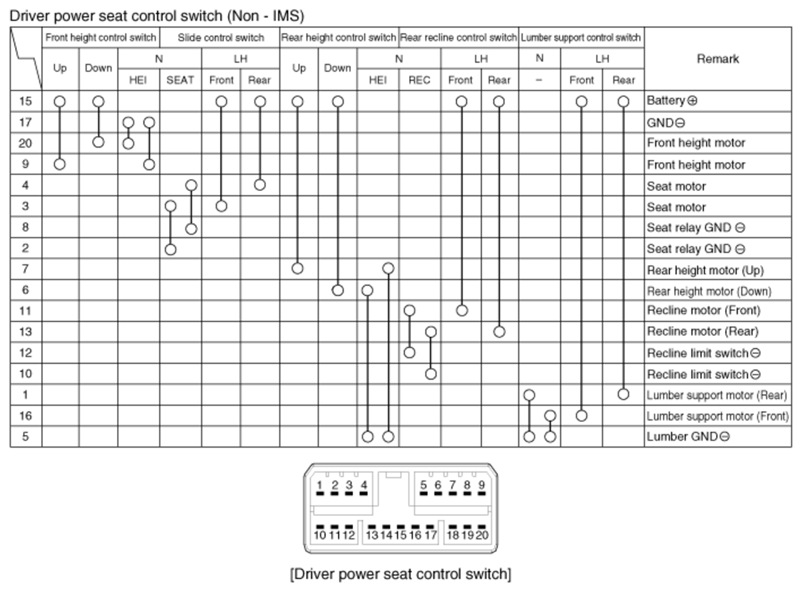

   Fig 2: Identifying Driver Power Seat Control Switch Connector Terminals

   Courtesy of HYUNDAI MOTOR CO.

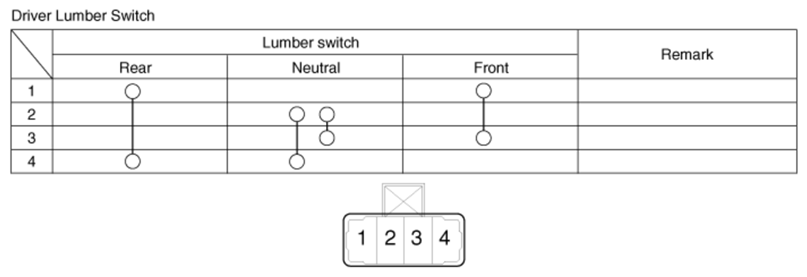

   Fig 3: Identifying Driver Lumber Switch Connector Terminals

   Courtesy of HYUNDAI MOTOR CO.

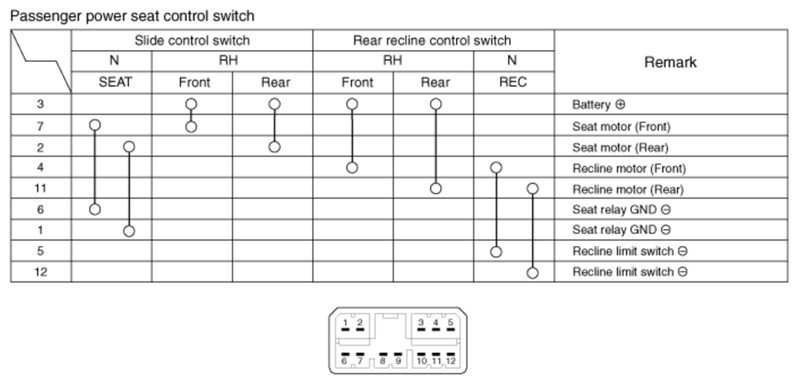

   Fig 4: Identifying Passenger Power Seat Control Switch Connector Terminals

   Courtesy of HYUNDAI MOTOR CO.
