Armrest Replacement

  1. After loosening the mounting nuts, then remove the armrest (A).

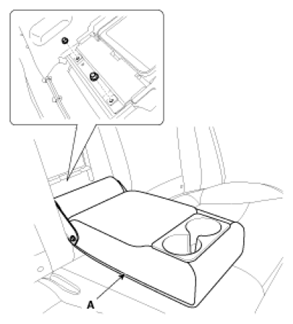

    Fig 1: Identifying Armrest With Mounting Nuts
    G07359674Courtesy of HYUNDAI MOTOR CO.
  2. Installation is the reverse of removal.
