Seat Back Replacement

Remove front seat assembly.
Remove the headrest.
Push the clips (B) from the seat back panel (A).
CAUTION:
- Push the middle area of clip using the flat head screwdriver.
- Be careful not to damage the clips.

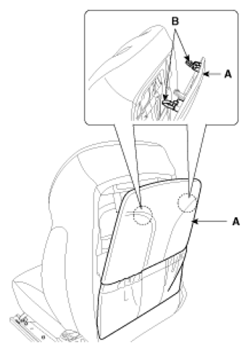

  Fig 1: Identifying Seat Back Panel And Clips
  Courtesy of HYUNDAI MOTOR CO.
Push the protector (A) by the seat back frame.

Fig 2: Identifying Seat Back Frame Protector
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A) mounting clip.

Fig 3: Identifying Connector And Mounting Clip
Courtesy of HYUNDAI MOTOR CO.
Pull out the headrest guides (A) while pinching the end of the guides, and remove them.

Fig 4: Pulling Out Headrest Guides
Courtesy of HYUNDAI MOTOR CO.
Remove the seat back from the frame.
After removing the hog ring clips (B) on the front of seat back and remove the seat back cover (A).
CAUTION:
- When removing the hog-ring clip, remove the hog-ring clip with pressing the wire not to separate the wire from the sponge.

  Fig 5: Identifying Seat Back Cover And Hog Ring Clips
  Courtesy of HYUNDAI MOTOR CO.
NOTE:
- Be sure to perform PODS re-zero with the GDS after replacing parts (passenger's) (Refer to AIRBAG )
Installation is the reverse of removal.
NOTE:
- To prevent wrinkles, make sure the material is stretched evenly over the cover (B) before securing the hog ring clips (A).
- Replace the hog ring clips with new ones using special tool (C) (09880-4F000).

  Fig 6: Replacing Hog Ring Clips With Using Special Tool
  Courtesy of HYUNDAI MOTOR CO.
