Components And Components Location: Components

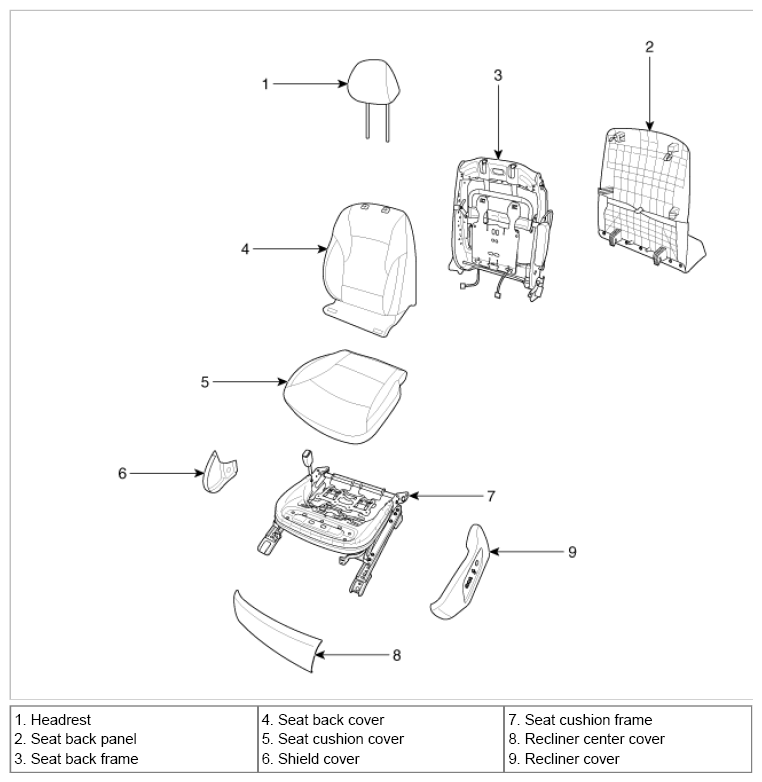

Fig 1: Identifying Front Seat Components Location

G07359651

Courtesy of HYUNDAI MOTOR CO.
