Circuit Diagram

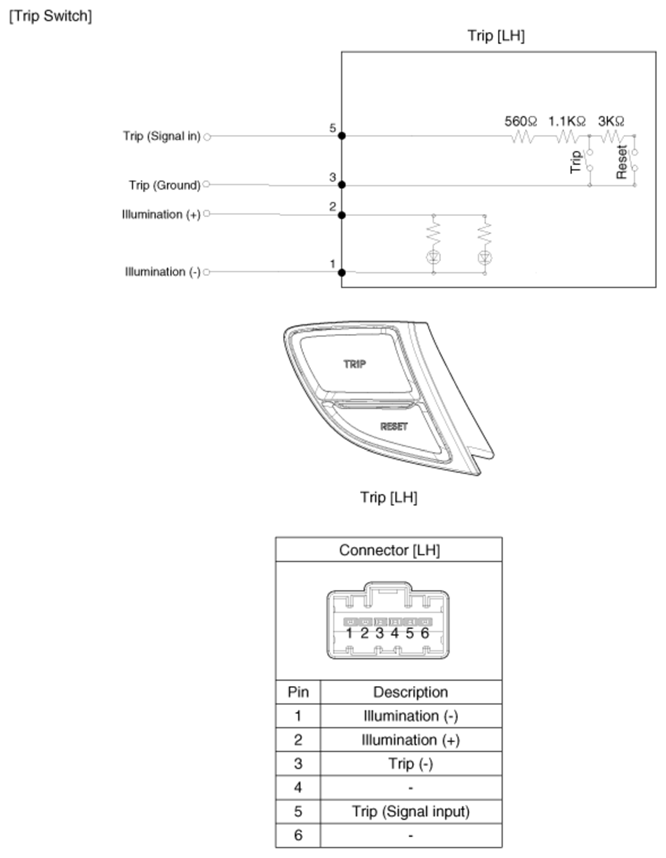

Fig 1: Trip Switch Circuit Diagram (1 Of 3)
G07360062Courtesy of HYUNDAI MOTOR CO.

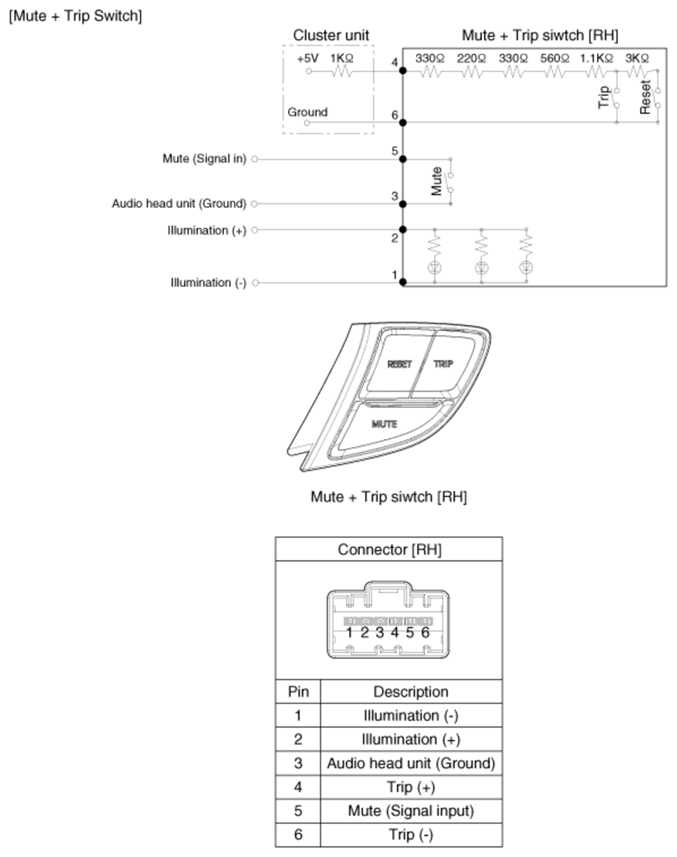

Fig 2: Trip Switch Circuit Diagram (2 Of 3)
G07360063Courtesy of HYUNDAI MOTOR CO.

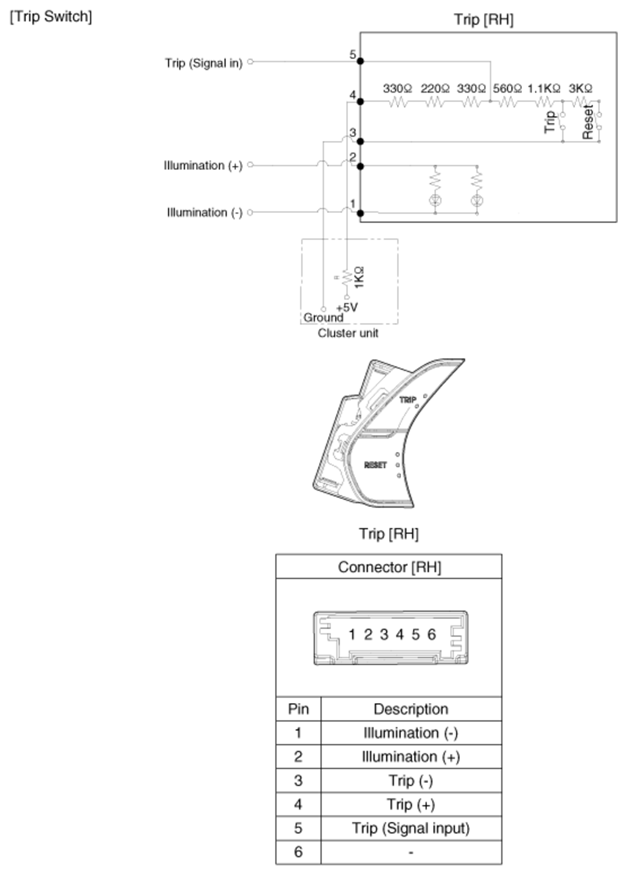

Fig 3: Trip Switch Circuit Diagram (3 Of 3)
G07360064Courtesy of HYUNDAI MOTOR CO.
