Repair Procedures: Inspection

  1. Check the audio remote control switch for resistance between No. 3 and No. 5 terminals in each switch position.

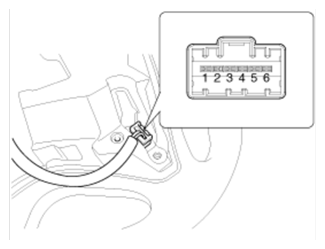

    Fig 1: Identifying Audio Remote Control Switch Connector Terminals
    G07360065Courtesy of HYUNDAI MOTOR CO.
    VOLTAGE SPECIFICATION CHART

    Switch Connector terminal Resistance (±5%) Output voltage (±0.25V)
    Reset 3 - 5 (LH) 5.54 kΩ 4.24 V
    Trip 3 - 5 (LH) 2.54 kΩ 3.59 V
  2. In case of RH, check the audio remote control switch for resistance between No. 3 and No. 4 (No. 4 and No. 6) terminals in each switch position.

    [Trip + Mute]

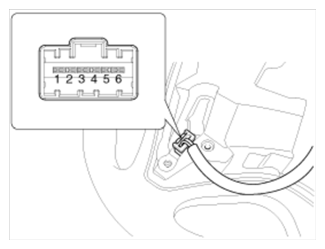

    Fig 2: Identifying Audio Remote Control Switch Connector Terminals (Trip+Mute)
    G07360066Courtesy of HYUNDAI MOTOR CO.
    VOLTAGE SPECIFICATION CHART

    Switch Connector terminal Resistance (±5%) Output voltage (±0.25V)
    Reset 4 - 6 (RH) 5.54 kΩ 4.24 V
    Trip 4 - 6 (RH) 2.54 kΩ 3.59 V

    [Trip Switch]

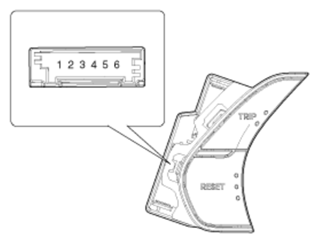

    Fig 3: Identifying Audio Remote Control Switch Connector Terminals (Trip Switch)
    G07360067Courtesy of HYUNDAI MOTOR CO.
    VOLTAGE SPECIFICATION CHART

    Switch Connector terminal Resistance (±5%) Output voltage (±0.22V)
    Reset 3 - 4 (RH) 5.54 kΩ 4.24 V
    Trip 3 - 4 (RH) 2.54 kΩ 3.59 V
