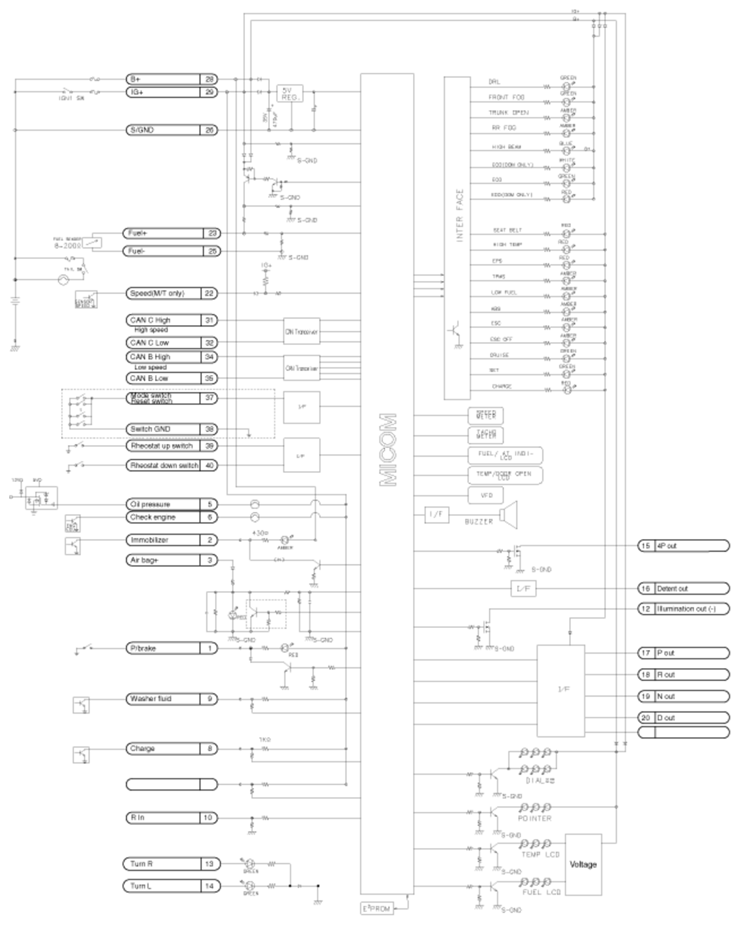

Home >> Hyundai >> 2011 >> Sonata GLS, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Indicators And Gauges - Except HEV >> Instrument Cluster >> Schematic Diagrams >> Circuit Diagram
