Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Tilt the steering column down.
  3. Remove the instrument cluster fascia lower panel (A).

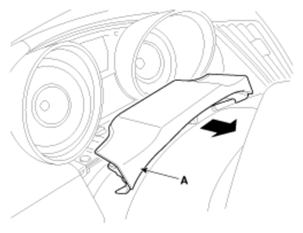

    Fig 1: Removing Instrument Cluster Fascia Lower Panel
    G07360059Courtesy of HYUNDAI MOTOR CO.
  4. Remove the instrument cluster (A) after loosening the screws.

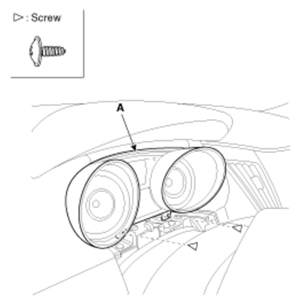

    Fig 2: Identifying Instrument Cluster With Screws
    G07360060Courtesy of HYUNDAI MOTOR CO.
  5. Disconnect the cluster connector (A), then remove the cluster.
    Fig 3: Identifying Cluster Connector
    G07360061Courtesy of HYUNDAI MOTOR CO.
