Repair Procedures: Inspection: Speedometer
- Adjust the pressure of the tires to the specified level.

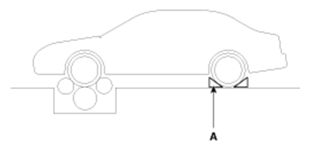

- Drive the vehicle onto a speedometer tester. Use wheel chocks (A) as appropriate.
- Check if the speedometer indicator range is within the standard values.CAUTION: Do not operate the clutch suddenly or increase/decrease speed rapidly while testing.NOTE: Tire wear and tire over or under inflation will increase the indication error.
[Canada - km/h]
TOLERANCE VELOCITY SPECIFICATION CHART
| Velocity (km/h) | Tolerance (km/h) | Velocity (km/h) | Tolerance (km/h) |
|---|---|---|---|
| 20 | +2.2 +0.2 |
160 | +5.5 +2.5 |
| 40 | +2.3 +0.3 |
180 | +7.3 +3.3 |
| 60 | +2.5 +0.5 |
200 | +7.5 +3.5 |
| 80 | +3.2 +0.7 |
220 | +8 +4 |
| 100 | +4 +1 |
240 | +8.5 +4.5 |
| 120 | +4.5 +1.5 |
260 | - |
| 140 | +5 +2 |
* | * |
[USA - MPH]
TOLERANCE VELOCITY SPECIFICATION CHART
| Velocity (MPH) | Tolerance (MPH) | Velocity (MPH) | Tolerance (MPH) |
|---|---|---|---|
| 10 | +1.5 +0 |
100 | +3.8 +1.3 |
| 20 | +1.5 +0 |
120 | +5 +2 |
| 40 | +1.5 +0 |
140 | +6 +3 |
| 60 | +2.3 +0.3 |
160 | +5.8 +2.8 |
| 80 | +3.3 +0.8 |
