DTC Description

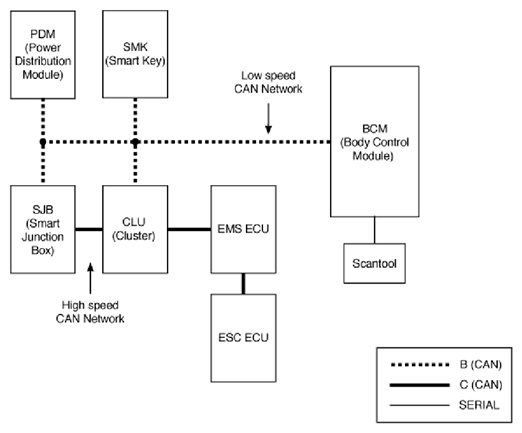

Fig 1: Low Speed And High Speed CAN Network
G07356724Courtesy of HYUNDAI MOTOR CO.

This code is set when Front left turn signal lamp circuit is open for more than 150ms during left turn signal lamp operating.
