General Information: General Description

Once BCM receives fog lamp switch working signal, it sends the signal to SJB by CAN communition. SJB turns on fog lamp.

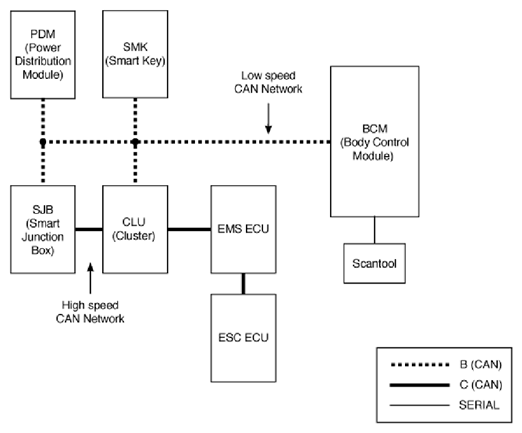

Fig 1: Low Speed And High Speed CAN Network

Courtesy of HYUNDAI MOTOR CO.
