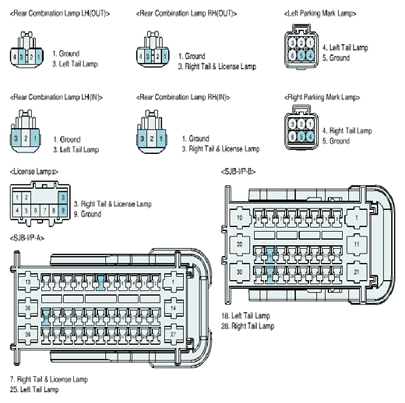

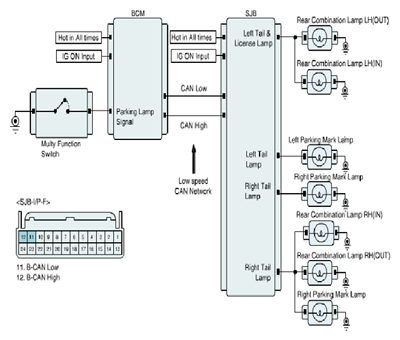

Home >> Hyundai >> 2011 >> Sonata GLS, Automatic >> Repair and Diagnosis >> Accessories & Equipment >> Exterior Lights >> Body Control - Smart Junction Box Diagnosis - Except HEV >> DTC B2515: External Tail Lamp LH Circuit Short to Ground >> General Information >> Diagnostic Circuit Diagram
