Diagnostic Circuit Diagram

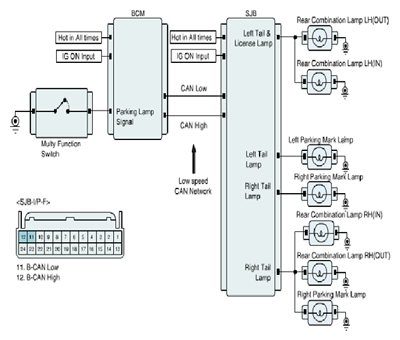

Fig 1: Tail Lamp And SJB Circuit Diagram
G07356697Courtesy of HYUNDAI MOTOR CO.

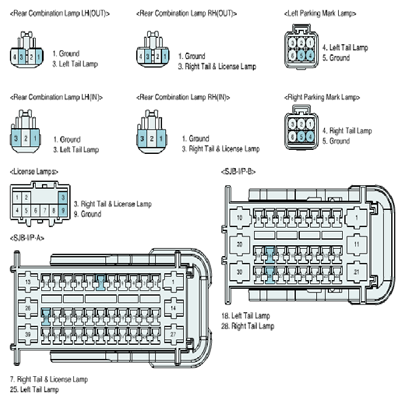

Fig 2: Identifying Rear Combination Lamp, Left And Right Marking Park Lamp And License Lamp Connector Terminals
G07356698Courtesy of HYUNDAI MOTOR CO.
