Seat Belt Switch

  1. Remove the connector from the switch.
  2. Check for continuity between terminals.
    CONTINUITY SPECIFICATION

    Seat belt condition Continuity
    Fastened Non-conductive (∞Ω)
    Not fastened Conductive (Ω)

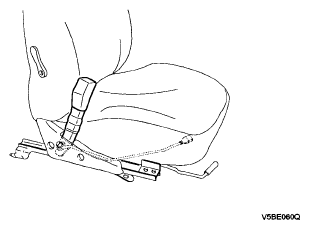

    Fig 1: Identifying Seat Belt Switch Connector
    G04803000Courtesy of HYUNDAI MOTOR CO.
