Rear Seat Belt Replacement

CAUTION:

When installing the belt, make sure not to damaged the retractor.

Remove the following items first:
1. Rear seat assembly
Remove the lower anchor (A).
Tightening torque:

39.2 ~ 53.9 N.m (4.0 ~ 5.5kgf.m, 28.9 ~ 39.8 lb-ft)

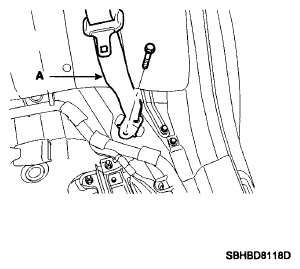

Fig 1: Identifying Lower Anchor
Courtesy of HYUNDAI MOTOR CO.
Remove the package tray trim.
After loosening the retractor (B) mounting bolt, remove the rear seat belt (C).
Tightening torque:

39.2 ~ 53.9 N.m (4.0 ~ 5.5kgf.m, 28.9 ~ 39.8 lb-ft)

Fig 2: Identifying Retractor Mounting Bolt And Rear Seat Belt
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
