Rear Seat Belt Buckle Replacement

  1. Remove the rear seat assembly.
  2. Remove the rear seat belt buckle (A).

    Tightening torque:

    39.2 ~ 53.9 N.m (4.0 ~ 5.5kgf.m, 28.9 ~ 39.8 lb-ft)

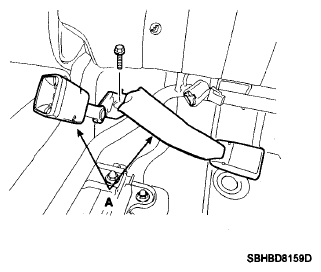

    Fig 1: Identifying Rear Seat Belt Buckle
    G06103489Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
