Front Seat Belt Replacement

CAUTION:

Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
Remove the following items fist:
1. Front seat assembly
2. Door scuff trim
Remove the seat belt lower anchor cover (A).

Fig 1: Identifying Seat Belt Lower Anchor Cover
Courtesy of HYUNDAI MOTOR CO.

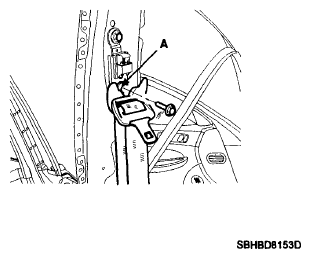

Loosen the lower anchor mounting bolt (A).
Tightening torque:

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

Fig 2: Identifying Seat Belt Lower Anchor With Mounting Bolt
Courtesy of HYUNDAI MOTOR CO.
Remove the center pillar lower trim.
Remove the center pillar upper trim.
Remove the upper anchor (A).
Tightening torque :

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

Fig 3: Identifying Upper Anchor
Courtesy of HYUNDAI MOTOR CO.
After disconnecting the pretensioner connector lock pin, remove the SQUIB connector (B), Loosen the mounting bolt, then remove the pretensioner (C).
Tightening torque:

39.2 ~ 53.9 N.m (4.0 ~ 5.5 kgf.m, 28.9 ~ 39.8 lb-ft)

Fig 4: Identifying SQUIB Connector, Mounting Bolt And Pretensioner
Courtesy of HYUNDAI MOTOR CO.
Remove the seat belt guide bracket (A).

Fig 5: Identifying Seat Belt Guide Bracket
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
