Seat Assembly Replacement

Driver's

1. Remove the seat belt lower anchor cover (A).
   Fig 1: Identifying Seat Belt Lower Anchor Cover

   Courtesy of HYUNDAI MOTOR CO.
2. After loosening the seat belt lower anchor mounting bolt, remove the seat belt lower anchor (A).
   Fig 2: Identifying Seat Belt Lower Anchor With Mounting Bolt

   Courtesy of HYUNDAI MOTOR CO.
3. Remove the seat assembly mounting cover.
4. After loosening the seat assembly mounting bolts, remove the seat assembly (A).
   Fig 3: Identifying Seat Assembly With Seat Assembly Mounting Bolts

   Courtesy of HYUNDAI MOTOR CO.
5. Disconnect the connectors (A), and remove the seat assembly.

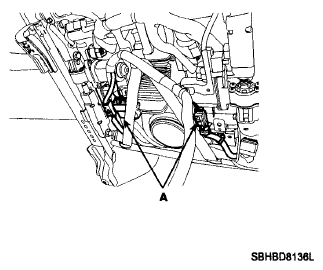

   Fig 4: Identifying Seat Assembly Connectors

   Courtesy of HYUNDAI MOTOR CO.
6. Installation is the reverse of removal.

Passenger's

1. Remove the seat belt lower anchor cover (A)
   Fig 5: Identifying Seat Belt Lower Anchor Cover

   Courtesy of HYUNDAI MOTOR CO.
2. After loosening the seat belt lower anchor mounting bolt, remove the seat belt lower anchor (A).
3. Disconnect connector (B).
   Fig 6: Identifying Seat Belt Lower Anchor & Connector

   Courtesy of HYUNDAI MOTOR CO.
4. Disconnect the connectors (A), and remove the seat assembly.

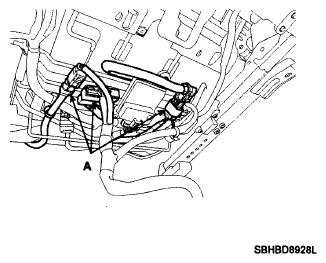

   Fig 7: Identifying Seat Assembly Connectors

   Courtesy of HYUNDAI MOTOR CO.
5. Installation is the reverse of removal.
   NOTE:

   • Be sure to perform PODS re-zero with Hi-scan (PRO) after replacing parts (Passenger's)

     (Refer to AIR BAG MODULE )
