Instrument Cluster: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel (A).

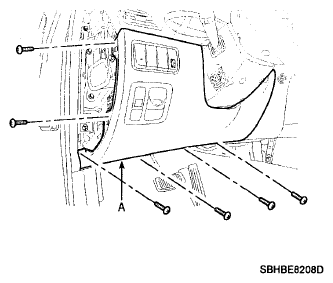

    Fig 1: Identifying Crash Pad Lower Panel
    G06103861Courtesy of HYUNDAI MOTOR CO.
  3. Remove the cluster fascia panel (A) after removing the screws.

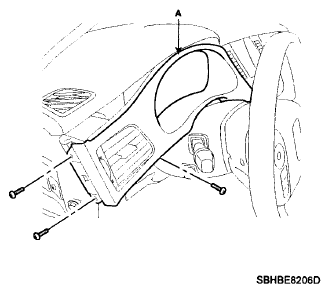

    Fig 2: Identifying Cluster Fascia Panel
    G06103862Courtesy of HYUNDAI MOTOR CO.
  4. Remove the cluster (A).

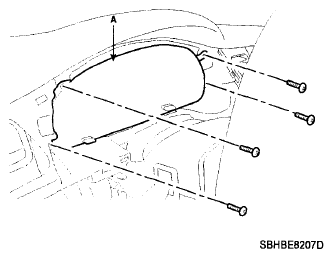

    Fig 3: Identifying Cluster
    G06103863Courtesy of HYUNDAI MOTOR CO.
  5. Remove the connector (A).

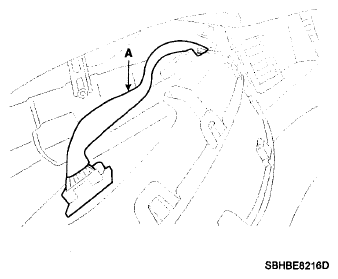

    Fig 4: Identifying Connector
    G06103864Courtesy of HYUNDAI MOTOR CO.
