Room Lamp Replacement

  1. Using a screwdriver, remove the cover (A).
  2. Loosen the mounting screws, remove the room lamp (B).

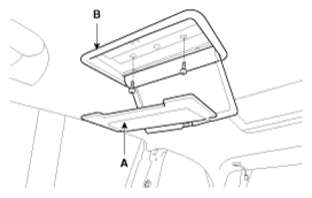

    Fig 1: Identifying Cover And Room Lamp
    G07312459Courtesy of HYUNDAI MOTOR CO.
  3. Disconnect the connector (A).

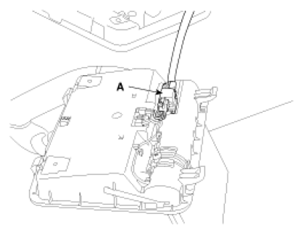

    Fig 2: Identifying Connector
    G07312460Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE:
    • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
    • Put on gloves to protect your hands.
    • Make sure the connector is plugged in properly.
