Roof Trim Assembly Replacement

NOTE:

Put on gloves to protect your hands.
When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.

Remove the following items:
1. Front seat.
2. Rear seat.
3. Sunvisor.
4. Overhead console.
5. Room lamp.
6. Assist handle.
Remove the ECM room mirror cover (A).

Fig 1: Identifying ECM Room Mirror Cover
Courtesy of HYUNDAI MOTOR CO.

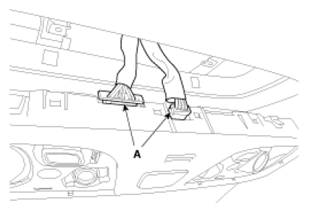

Disconnect the connector (A).

Fig 2: Identifying Connector
Courtesy of HYUNDAI MOTOR CO.

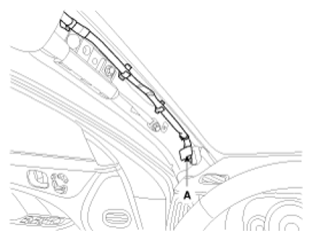

Disconnect the main wiring driver's connector (A).

Fig 3: Identifying Main Wiring Driver`s Connector
Courtesy of HYUNDAI MOTOR CO.
Disconnect the main wiring passenger's connector (B).

Fig 4: Identifying Main Wiring Passenger`s Connector
Courtesy of HYUNDAI MOTOR CO.
Using a screwdriver, remove the rear room lamp cover (A).

Fig 5: Identifying Rear Room Lamp Cover
Courtesy of HYUNDAI MOTOR CO.
Loosen the mounting screws, then remove the rear room lamp (A).

Fig 6: Identifying Rear Room Lamp
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A).

Fig 7: Identifying Connector
Courtesy of HYUNDAI MOTOR CO.
Detach the clips, then remove the roof trim (A).

Fig 8: Identifying Roof Trim
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Replace any damage clips.
