Overhead Console Replacement

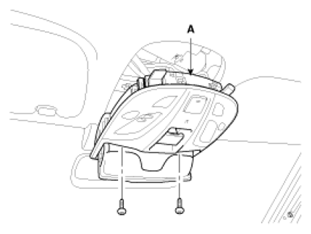

  1. Loosen the mounting screws, then remove the console assembly (A).
    Fig 1: Identifying Console Assembly
    G07312457Courtesy of HYUNDAI MOTOR CO.

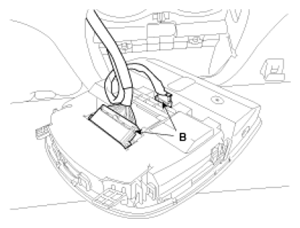

  2. Disconnect the connector (B).
    Fig 2: Identifying Connector
    G07312458Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
    NOTE:
    • Make sure the connector is plugged in properly.
