Sunvisor Replacement: Notes

NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
  • Put on gloves to protect your hands.
  1. Loosen the mounting screws, then remove the sunvisor (A) and retainer (B).

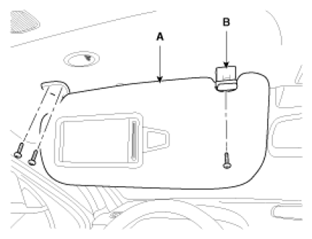

    Fig 1: Identifying Sunvisor And Retainer
    G07312454Courtesy of HYUNDAI MOTOR CO.
  2. Disconnect the connector (C).
    Fig 2: Identifying Connector
    G07312455Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
