Shroud Replacement

  1. Loosen the mounting screws, remove the shroud assembly (A).
  2. Disconnect the connector (B).

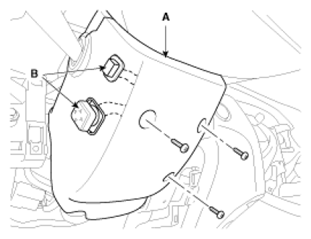

    Fig 1: Identifying Shroud Assembly And Connector
    G07312435Courtesy of HYUNDAI MOTOR CO.
  3. Installation is the reverse of removal.
