Cluster Replacement: Notes

CAUTION:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the crash pad canter fascia.
Loosen the mounting screws, remove the cluster fascia panel (A).

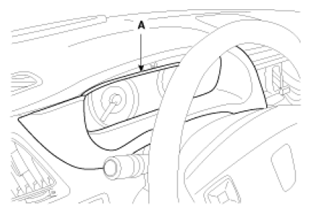

Fig 1: Identifying Cluster Fascia Panel
Courtesy of HYUNDAI MOTOR CO.
Loosen the mounting screws, remove the cluster (A).

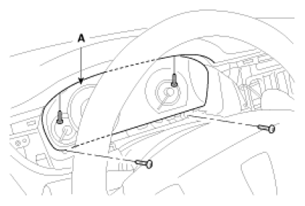

Fig 2: Identifying Cluster
Courtesy of HYUNDAI MOTOR CO.
Disconnect the cluster connectors (A)

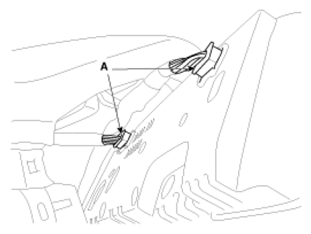

Fig 3: Identifying Cluster Connectors
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Replace any damage clips.
- Make sure the connector is plugged in properly.
