Main Crash Pad Replacement

CAUTION:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

Remove the following items;
1. Front seat.
2. Cluster.
3. Audio assembly.
4. Glove box.
5. Crash pad side cover.
6. Front pillar trim.
Remove the crash pad side garnish (A).

Fig 1: Identifying Crash Pad Side Garnish
Courtesy of HYUNDAI MOTOR CO.
Using a screwdriver, remove the center speaker grill (A).

Fig 2: Identifying Center Speaker Grill
Courtesy of HYUNDAI MOTOR CO.
Loosen the mounting screws, remove the center speaker (A).
Disconnect the connector (B).

Fig 3: Identifying Center Speaker And Connector
Courtesy of HYUNDAI MOTOR CO.

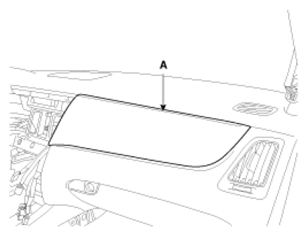

Loosen the mounting screws, remove the crash pad under cover (A).

Fig 4: Identifying Crash Pad Under Cover
Courtesy of HYUNDAI MOTOR CO.

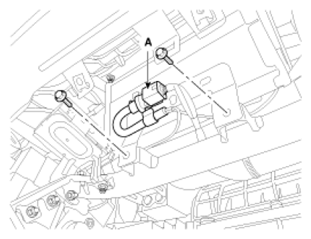

Disconnect the passenger's air bag connector (A).
Remove the passenger's air bag mounting bolts.

Fig 5: Identifying Passenger's Air Bag Connector
Courtesy of HYUNDAI MOTOR CO.

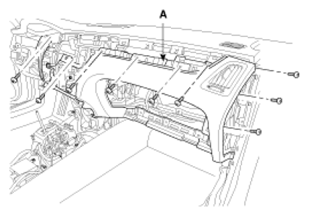

Loosen the mounting screws, remove the crash pad lower panel (A).

Fig 6: Identifying Crash Pad Lower Panel
Courtesy of HYUNDAI MOTOR CO.

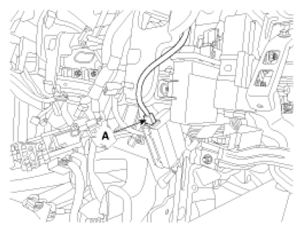

Disconnect the connector (A).

Fig 7: Identifying Connector
Courtesy of HYUNDAI MOTOR CO.

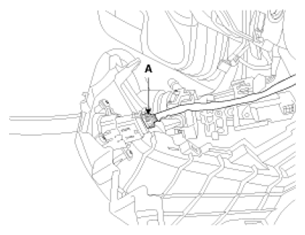

Disconnect the connector (A).

Fig 8: Identifying Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the auto photo and auto light sensor (B) from crash pad upper side by using screwdriver or remover then disconnect the connector (A).

Fig 9: Identifying Auto Photo And Auto Light Sensor And Connector
Courtesy of HYUNDAI MOTOR CO.
Loosen the mounting bolts and nuts, then remove the main crash pad (B).

Fig 10: Identifying Main Crash Pad
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the crash pad fits onto the guide pins correctly.
- Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
- Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
