Lower Panel Replacement

  1. Remove the crash pad side cover.
  2. Loosen the crash pad lower panel mounting screws, remove the lower panel (A).
  3. Disconnect the connector.

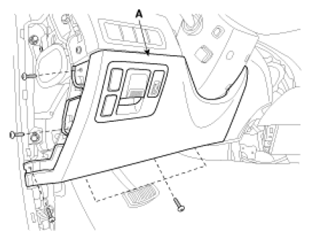

    Fig 1: Identifying Lower Panel
    G07312427Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse the removal.
    NOTE:
    • Make sure the connector is plugged in properly.
    • Replace any damage clips.
