Glove Box Replacement

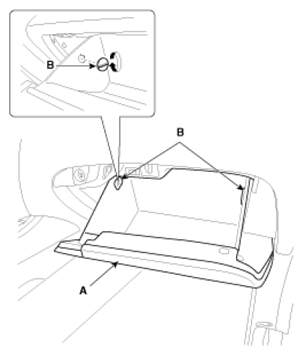

Disconnect the guide (B), from the glove box (A).

Fig 1: Disconnecting Guide From Glove Box
Courtesy of HYUNDAI MOTOR CO.
Disconnect the damper (A) from the glove box.

Fig 2: Identifying Damper
Courtesy of HYUNDAI MOTOR CO.
Loosen the mounting bolts and screw, remove the glove box housing (A).

Fig 3: Identifying Glove Box Housing
Courtesy of HYUNDAI MOTOR CO.
Disconnect the connector (A).

Fig 4: Identifying Connector
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Replace any damage clips.
