DIS Head Unit Replacement

  1. Remove the crash pad lower fascia panel.
  2. Remove the center fascia panel.
  3. Loosen the mounting screws, then remove dis head unit (A).

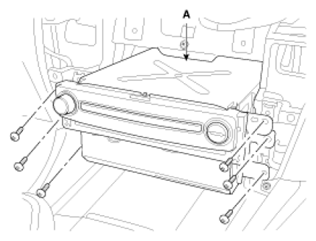

    Fig 1: Identifying Dis Head Unit
    G07312429Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the connectors (A).

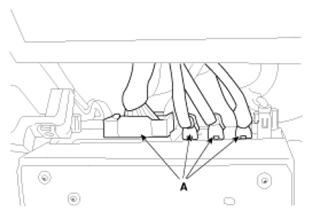

    Fig 2: Identifying Connectors
    G07312430Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse the removal.
    NOTE:
    • Make sure the connector is plugged in properly.
    • Check the audio system.
