Cowl Cross Bar Assembly Replacement

  1. Remove the front seat.
  2. Remove the floor console.
  3. Remove the crash pad.
  4. Loosen the mounting bolts, then remove the A/C hose.

    (Refer to REPLACEMENT "Air conditioning system" in HA group) )

  5. Remove the clips, then remove heater hose.

    (Refer to "HEATER " in HA group)

  6. Remove the cowl top cover.
  7. Disconnect the driver's wiring connectors.

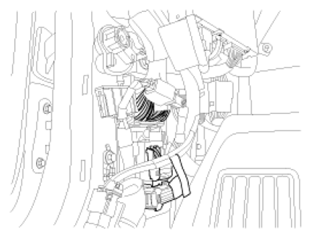

    Fig 1: Identifying Driver`s Wiring Connectors
    G07312448Courtesy of HYUNDAI MOTOR CO.
  8. Disconnect the passenger's wiring connectors.

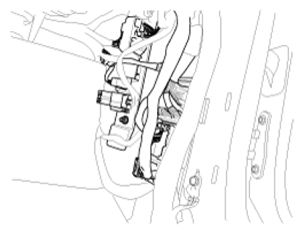

    Fig 2: Identifying Passenger`s Wiring Connectors
    G07312449Courtesy of HYUNDAI MOTOR CO.
  9. Disconnect the air bag connector (A), then remove the wiring (B).

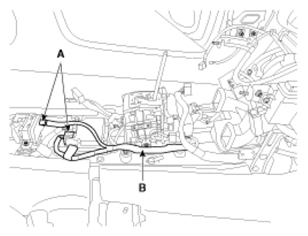

    Fig 3: Identifying Air Bag Connector And Wiring
    G07312450Courtesy of HYUNDAI MOTOR CO.
  10. Loosen the mounting nut, then remove the air duct (A).

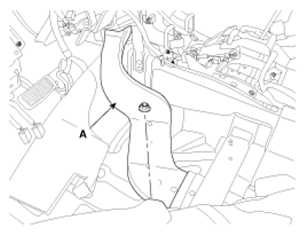

    Fig 4: Identifying Air Duct
    G07312451Courtesy of HYUNDAI MOTOR CO.
  11. Loosen the mounting bolts, then remove the cowl cross bar (A).

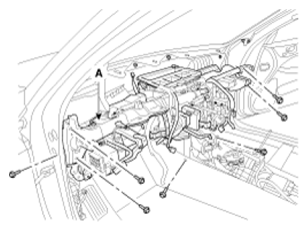

    Fig 5: Identifying Cowl Cross Bar
    G07312452Courtesy of HYUNDAI MOTOR CO.
  12. Installation is the reverse of removal.
    NOTE:
    • When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
    • Put on gloves to protect your hands.
    • Make sure the connector is plugged in properly.
