Center Fascia Panel Replacement

CAUTION:
  • When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  1. Remove the crash pad side cover.
  2. Using a screwdriver or remover, remove the crash pad lower panel (A).

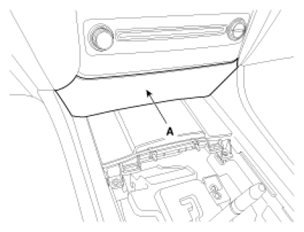

    Fig 1: Identifying Crash Pad Lower Panel
    G07312424Courtesy of HYUNDAI MOTOR CO.
  3. Remove the center fascia panel (A).
    Fig 2: Identifying Center Fascia Panel
    G07312425Courtesy of HYUNDAI MOTOR CO.
  4. Disconnect the connectors (A).

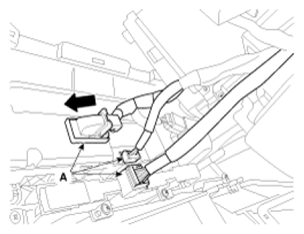

    Fig 3: Disconnecting Connectors
    G07312426Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse the removal.
    NOTE:
    • Make sure the connector is plugged in properly.
    • Replace any damage clips.
