Rear Pillar Trim Replacement

NOTE:
  • Put on gloves to protect your hands.
  • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the wheel house trim.
  2. Remove the cap, then loosen the mounting screw.
  3. Remove the rear pillar trim (A).

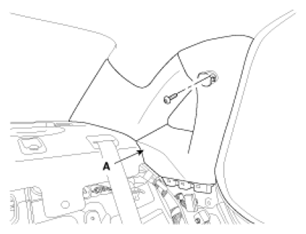

    Fig 1: Identifying Rear Pillar Trim
    G07312478Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE:
    • Replace any damaged clips.
