Partition Tray Trim Replacement

  1. Remove the rear seat assembly.
  2. Detach the clips, then remove the package trim (A).

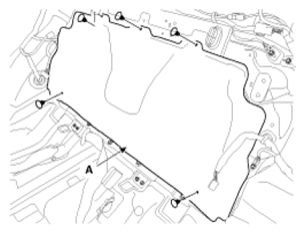

    Fig 1: Identifying Package Trim
    G07312485Courtesy of HYUNDAI MOTOR CO.
  3. Loosen the mounting bolts, then remove the package pillar (A).

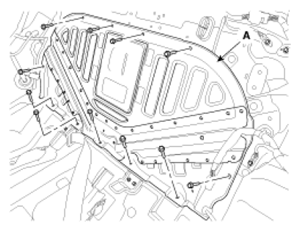

    Fig 2: Identifying Package Pillar
    G07312486Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
    NOTE:
    • Replace any damage clips.
