Package Tray Trim Replacement

Remove the rear seat.
Using a screwdriver or remover, remove the rear seat assembly.

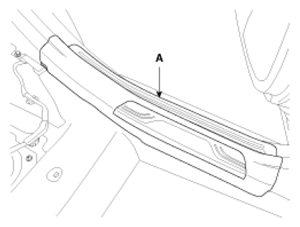

Remove the rear door scuff trim (A).

Fig 1: Identifying Rear Door Scuff Trim
Courtesy of HYUNDAI MOTOR CO.

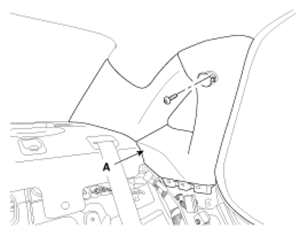

Loosen the mounting screws, then remove the rear wheel house trim (A).

Fig 2: Identifying Rear Wheel House Trim
Courtesy of HYUNDAI MOTOR CO.
Remove the cap, then loosen the mounting screw.
Remove the rear pillar trim.

Fig 3: Identifying Rear Pillar Trim
Courtesy of HYUNDAI MOTOR CO.
Push the hook, remove the rear seat belt cover (A).

Fig 4: Identifying Rear Seat Belt Cover
Courtesy of HYUNDAI MOTOR CO.
Remove the rear seat belt lower anchor (A).
Tightening torque:

39.2~53.9 N.m (4.0~5.5 kgf.m, 28.9~39.8 lb-ft)

Fig 5: Identifying Rear Seat Belt Lower Anchor
Courtesy of HYUNDAI MOTOR CO.

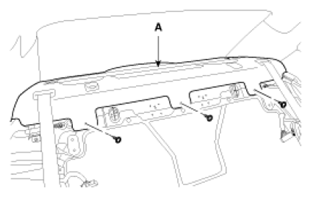

Loosen the mounting screws, then remove the package tray trim (A).

Fig 6: Identifying Package Tray Trim
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Replace any damage clips.
