Rear Console Assembly Replacement

CAUTION:
  • When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
  • Put on gloves to protect your hands.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the rear seat assembly.

    (Refer to the "REAR SEAT ")

  2. Disconnect the connector (A).

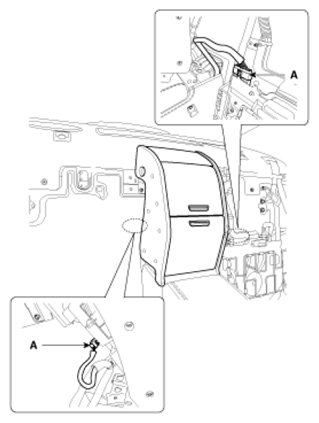

    Fig 1: Identifying Connector
    G07312416Courtesy of HYUNDAI MOTOR CO.
  3. Remove the cap (B).
  4. After loosening the mounting bolts, then remove the rear tower console complete assembly (A).
    Fig 2: Identifying Rear Tower Console Complete Assembly And Cap
    G07312417Courtesy of HYUNDAI MOTOR CO.
  5. Using a screwdriver or remover, remove the nozzle assembly (A).
    Fig 3: Identifying Nozzle Assembly
    G07312418Courtesy of HYUNDAI MOTOR CO.
  6. After loosening the mounting bolts, then remove the rear floor console complete assembly (A).
    Fig 4: Identifying Rear Floor Console Complete Assembly
    G07312419Courtesy of HYUNDAI MOTOR CO.
  7. Installation is the reverse of removal.
    CAUTION:
    • Make sure the connector is plugged in properly.
    • Replace any damage clips.
