Cup Holder Replacement

Remove the floor console.

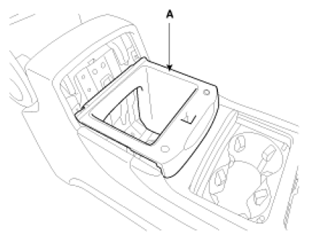

Loosen the mounting screws, remove the console tray (A).

Fig 1: Identifying Console Tray
Courtesy of HYUNDAI MOTOR CO.

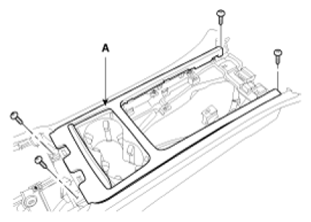

Loosen the mounting screws, remove the console upper cover (A).

Fig 2: Identifying Console Upper Cover
Courtesy of HYUNDAI MOTOR CO.
Loosen the mounting screws, remove the cup holder (A).

Fig 3: Identifying Cup Holder
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Replace any damage clips.
