Console Assembly Replacement

NOTE:

When prying with a flat-up screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

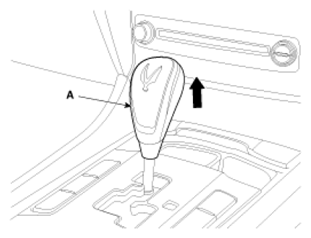

Remove the knob (A).

Fig 1: Removing Knob
Courtesy of HYUNDAI MOTOR CO.

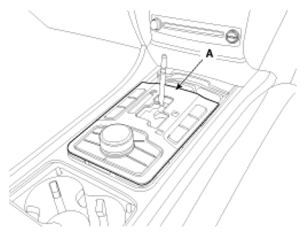

Using a screwdriver, remove the console upper cover (A).

Fig 2: Identifying Console Upper Cover
Courtesy of HYUNDAI MOTOR CO.

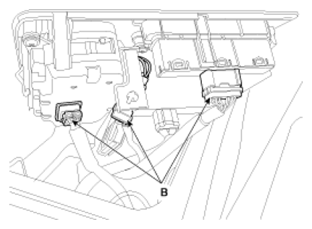

Disconnect the connectors (B).

Fig 3: Identifying Connector
Courtesy of HYUNDAI MOTOR CO.
Remove the extension side cover (A).

Fig 4: Removing Extension Side Cover
Courtesy of HYUNDAI MOTOR CO.

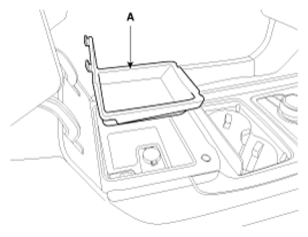

Using a screwdriver or remover, remove the console box cover (A).

Fig 5: Identifying Console Box Cover
Courtesy of HYUNDAI MOTOR CO.

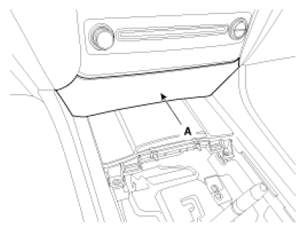

Remove the center fascia lower cover (A).

Fig 6: Identifying Center Fascia Lower Cover
Courtesy of HYUNDAI MOTOR CO.

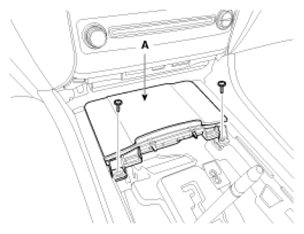

Loosen the console mounting screws, remove the floor console upper tray (A).

Fig 7: Identifying Floor Console Upper Tray
Courtesy of HYUNDAI MOTOR CO.

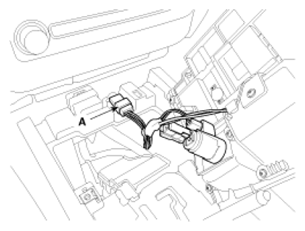

Disconnect the connector (A).

Fig 8: Identifying Connector
Courtesy of HYUNDAI MOTOR CO.

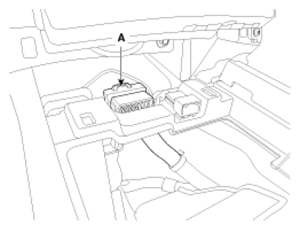

Disconnect the floor console main connector (A).

Fig 9: Identifying Floor Console Main Connector
Courtesy of HYUNDAI MOTOR CO.
Loosen the mounting screws and bolts, remove the console assembly (A).

Fig 10: Identifying Console Assembly
Courtesy of HYUNDAI MOTOR CO.

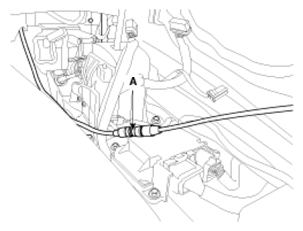

Disconnect the audio cable (A).

Fig 11: Identifying Audio Cable
Courtesy of HYUNDAI MOTOR CO.
Installation is the reverse of removal.
NOTE:
- Make sure the connector is plugged in properly.
- Replace any damage clips.
