Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the cluster fascia panel (A) after removing the screws.
    Fig 1: Identifying Cluster Fascia Panel
    G07312892Courtesy of HYUNDAI MOTOR CO.

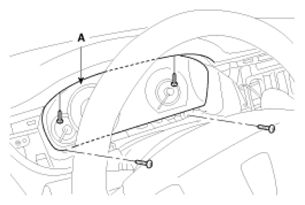

  3. Remove the cluster (A).
    Fig 2: Identifying Cluster
    G07312893Courtesy of HYUNDAI MOTOR CO.
  4. Remove the connector (A).
    Fig 3: Identifying Connectors
    G07312894Courtesy of HYUNDAI MOTOR CO.
