Components and Components Location: Components

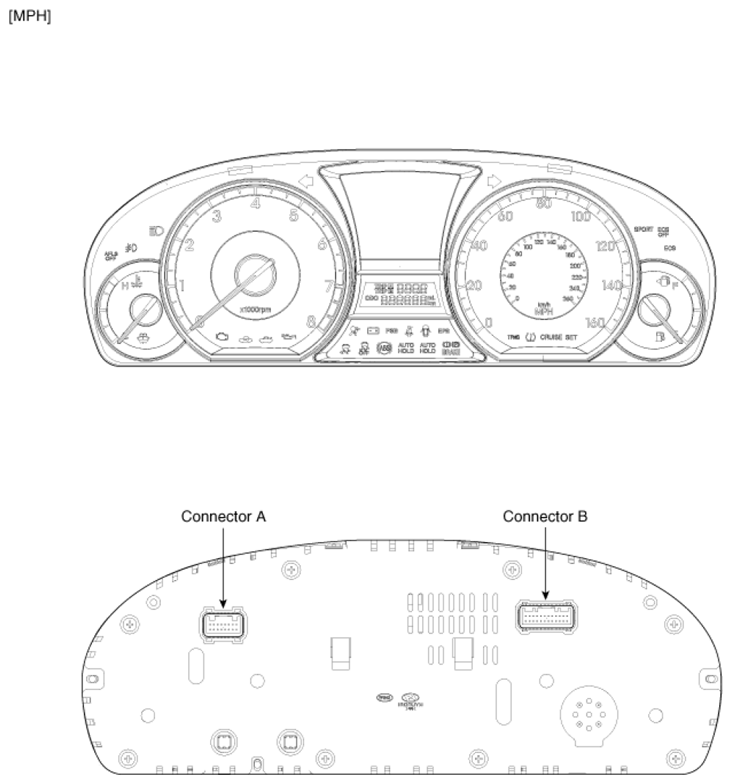

Fig 1: Identifying Instrument Cluster

G07312888

Courtesy of HYUNDAI MOTOR CO.

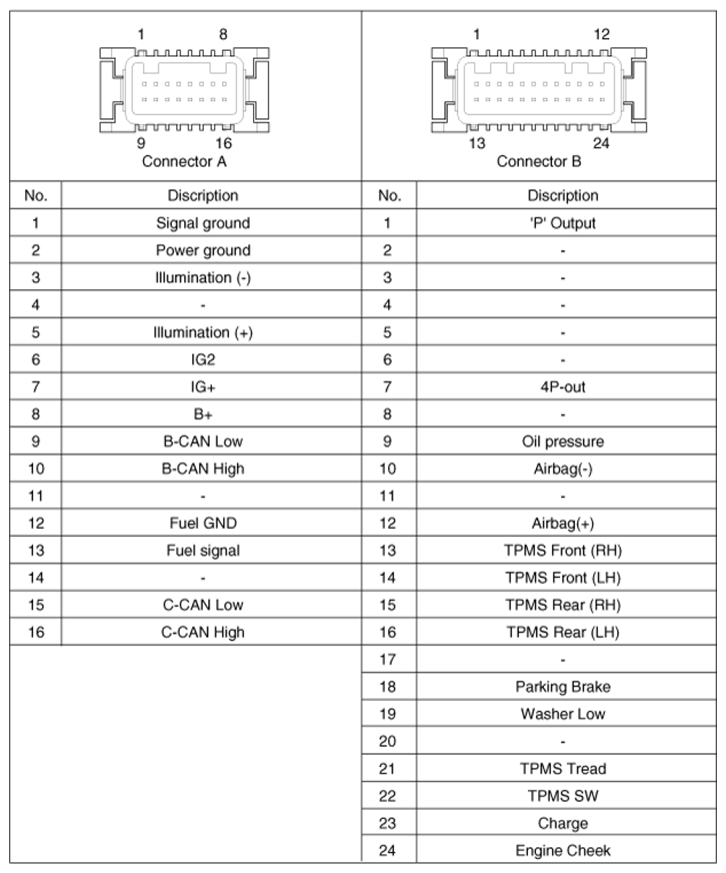

Fig 2: Connector Description Chart

G07312889

Courtesy of HYUNDAI MOTOR CO.
