Parking Brake Switch (EPB SW)

The parking brake switch (A) is a EPB switch type. It is located at the lower crash panel.

(Refer to "EPB SWITCH ")

1. Check registance between the terminal and switch body with the switch (A) ON.

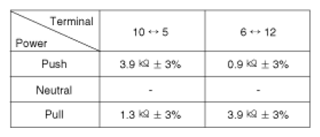

   Fig 1: Identifying Parking Brake Switch Terminals Continuity Chart (EPB SW)

   Courtesy of HYUNDAI MOTOR CO.
2. Check registance between the terminal and switch body with the switch OFF.

   If it's is not as specified, replace the switch or inspect its ground connection.

   Fig 2: Identifying Parking Brake Switch (EPB SW)

   Courtesy of HYUNDAI MOTOR CO.
