Passenger's Wiper Blade Replacement

Method 1

1. Lift the wiper arm (passenger side) about 10mm the windshield glass with wiper switch off.
   CAUTION:

   • Take care not to damage between the hood and wiper arm.
2. Replace the blade(A) pressing the blade fixing lever.
   Fig 1: Replacing Blade

   Courtesy of HYUNDAI MOTOR CO.

Method 1

1. Turn on the wiper switch after IGN ON.

   IGN OFF to stop the blade on the windshield glass.

   Fig 2: Turning Wiper Switch

   Courtesy of HYUNDAI MOTOR CO.
2. Lock back it after standing the wiper arm

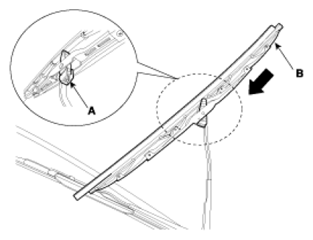

3. Replace the blade(B) pressing the blade fixing lever(A).
   Fig 3: Replacing Blade

   Courtesy of HYUNDAI MOTOR CO.
