Repair Procedures: Replacement: Removal

NOTE:
  • Put on gloves to protect your hands.
  • Use seat covers to avoid damaging any surfaces.
  1. Remove the following items.
    1. Front pillar trim, both sides.
    2. Windshield wiper arms and cowl cover

      (See "WINDSHIELD WIPER .

  2. Remove the windshield glass side molding.
    Fig 1: Identifying Windshield Glass Side Molding
    G07249955Courtesy of HYUNDAI MOTOR CO.
  3. Cut out the sealant using the sealant cutting tool (A) (09861-31100).

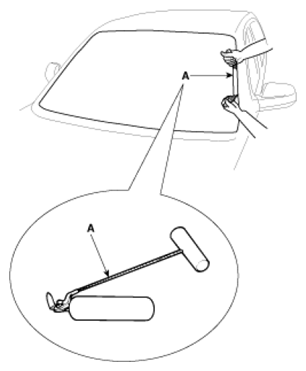

    Fig 2: Cutting Sealant Using Sealant Cutting Tool
    G07249956Courtesy of HYUNDAI MOTOR CO.
  4. Remove the windshield (A) carefully using the glass holder (B) (09861-31100).
    Fig 3: Removing Windshield
    G07249957Courtesy of HYUNDAI MOTOR CO.
