Room Lamp Replacement

NOTE:
  • When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
  • Put on gloves to protect your hands.
  1. Remove the room ramp.
    1. Remove the lens (A).
    2. Remove the screws.
    3. Pull out the room lamp (B).
    4. Disconnect the connector (C).

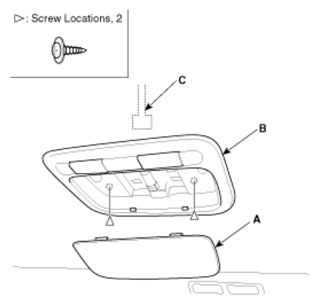

      Fig 1: Identifying Lens, Room Lamp And Connector
      G07249949Courtesy of HYUNDAI MOTOR CO.
  2. Installation is the reverse of removal.
