Rear Curtain Assemble Replacement

  1. Remove the package tray trim.
  2. Remove the trim (A).
  3. Loosening the rear curtain mounting bolts.
  4. Remove the rear curtain assembly (B).

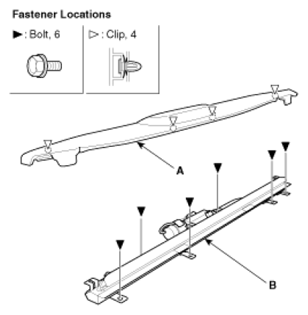

    Fig 1: Identifying Trim And Rear Curtain Assemble
    G07249971Courtesy of HYUNDAI MOTOR CO.
  5. Installation is the reverse of removal.
    NOTE:
    • Replace any damage clips.
