Lower Panel Replacement

  1. Remove the crash pad side cover.
  2. After loosening the crash pad lower panel mounting screw, then remove the lower panel (B).
  3. Disconnecting the connector (A).

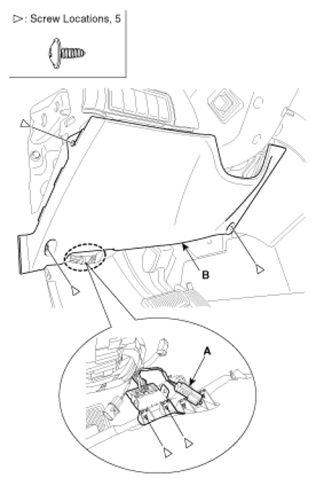

    Fig 1: Identifying Lower Panel And Connector
    G07249915Courtesy of HYUNDAI MOTOR CO.
  4. Installation is the reverse of removal.
